FUNCTIONAL MODULE / COMPONENT INTERFACES

Electrical load monitoring

Current measurement observes a pack, branch or phase. The receiving controller implements the defined monitoring behavior; a measurement device alone is not a safety function.

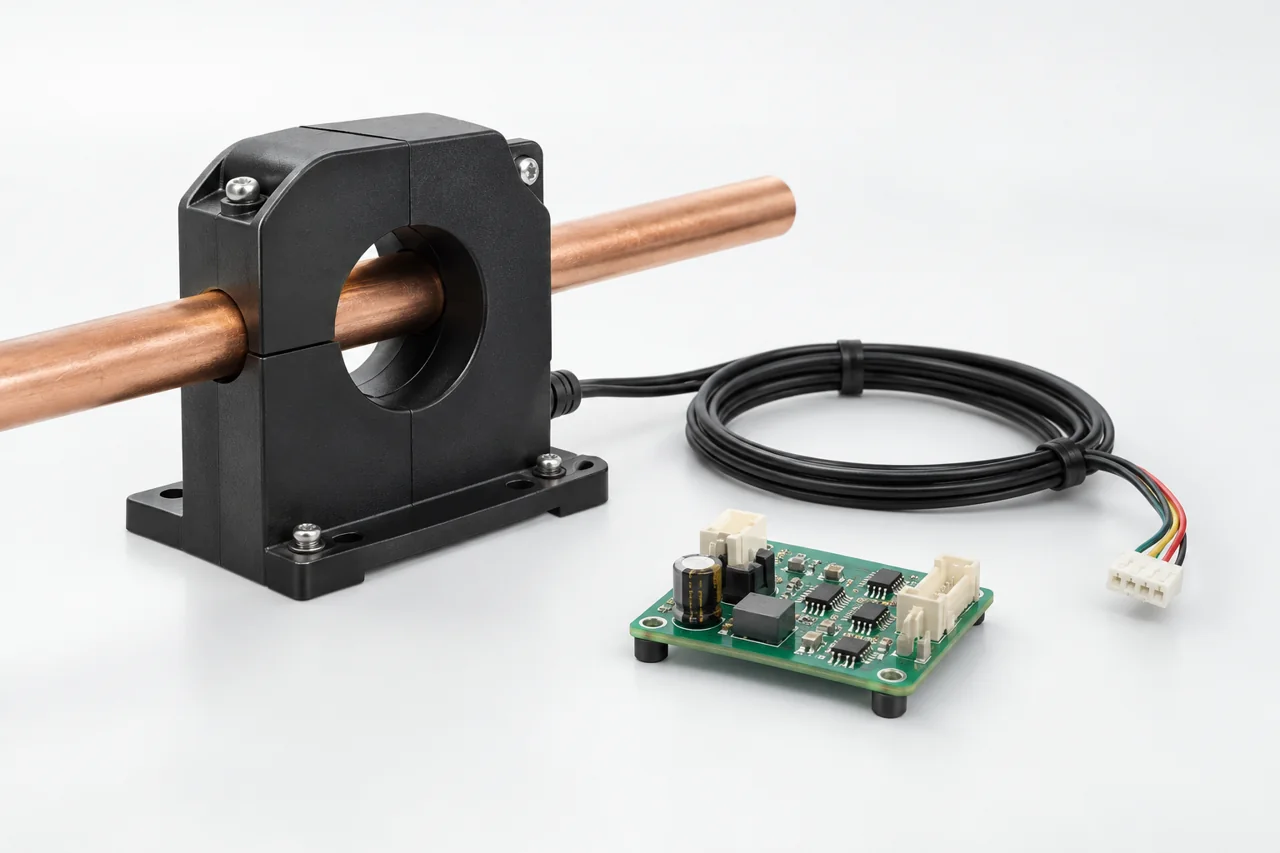

Electrical load monitoring hardware arrangement

FUNCTIONAL INTERFACE GUIDE

Functional breakdown

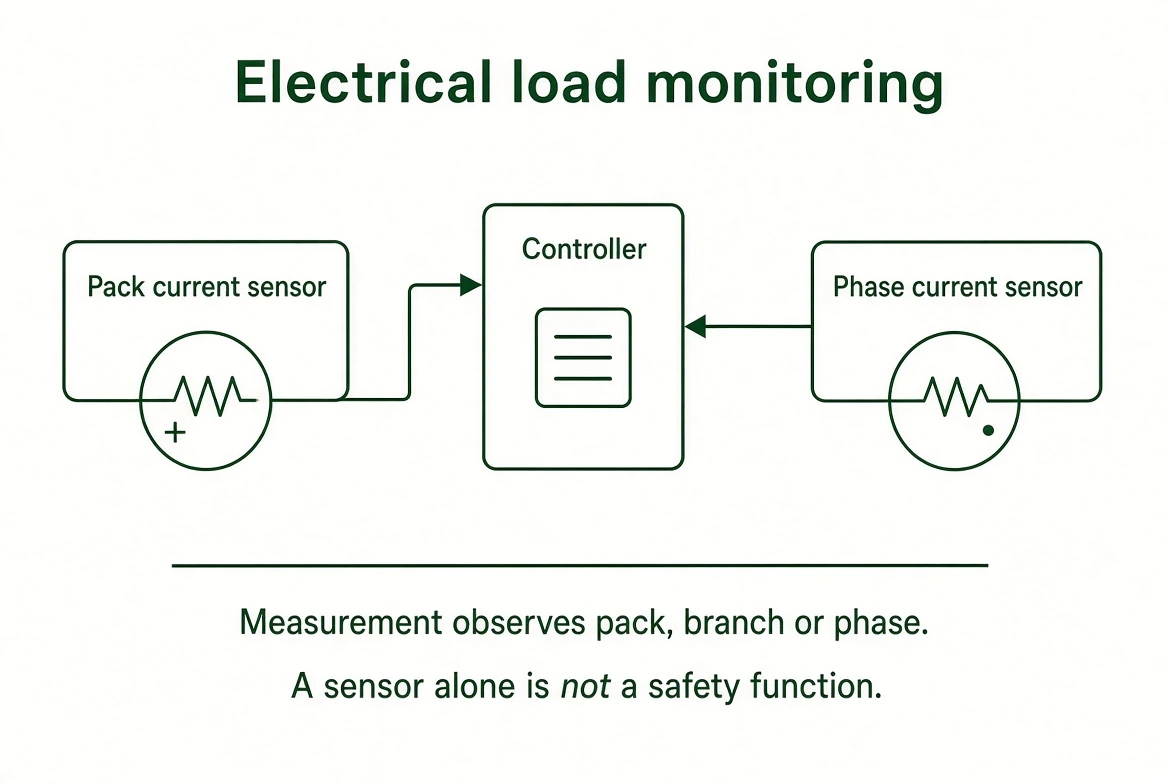

Electrical load monitoring functional diagram
Choose the actual measurement point: battery input, branch or motor phase. Specify current range, bandwidth, accuracy, common-mode conditions and the receiving analog or digital interface. Measurement alone is not a safety function. Functional selection guide; selected-device documentation defines dimensions and wiring.

What makes up this module

Current measurement

Define pack, branch or phase measurement; range, bandwidth, accuracy, isolation and receiving output format.

Open component details ↗

Signal connection

Confirm mating halves, device-specified coding, pin count, pinout and shielding.

Open component details ↗

Control supply

Separate brake-coil and logic demand; specify release peaks, noise tolerance and allowed voltage variation.

Open component details ↗

Define the module interfaces

01

Measurement point

02

Range, accuracy and bandwidth

03

Isolation/common-mode requirements

04

Analog or supported digital input
