FUNCTIONAL MODULE / COMPONENT INTERFACES

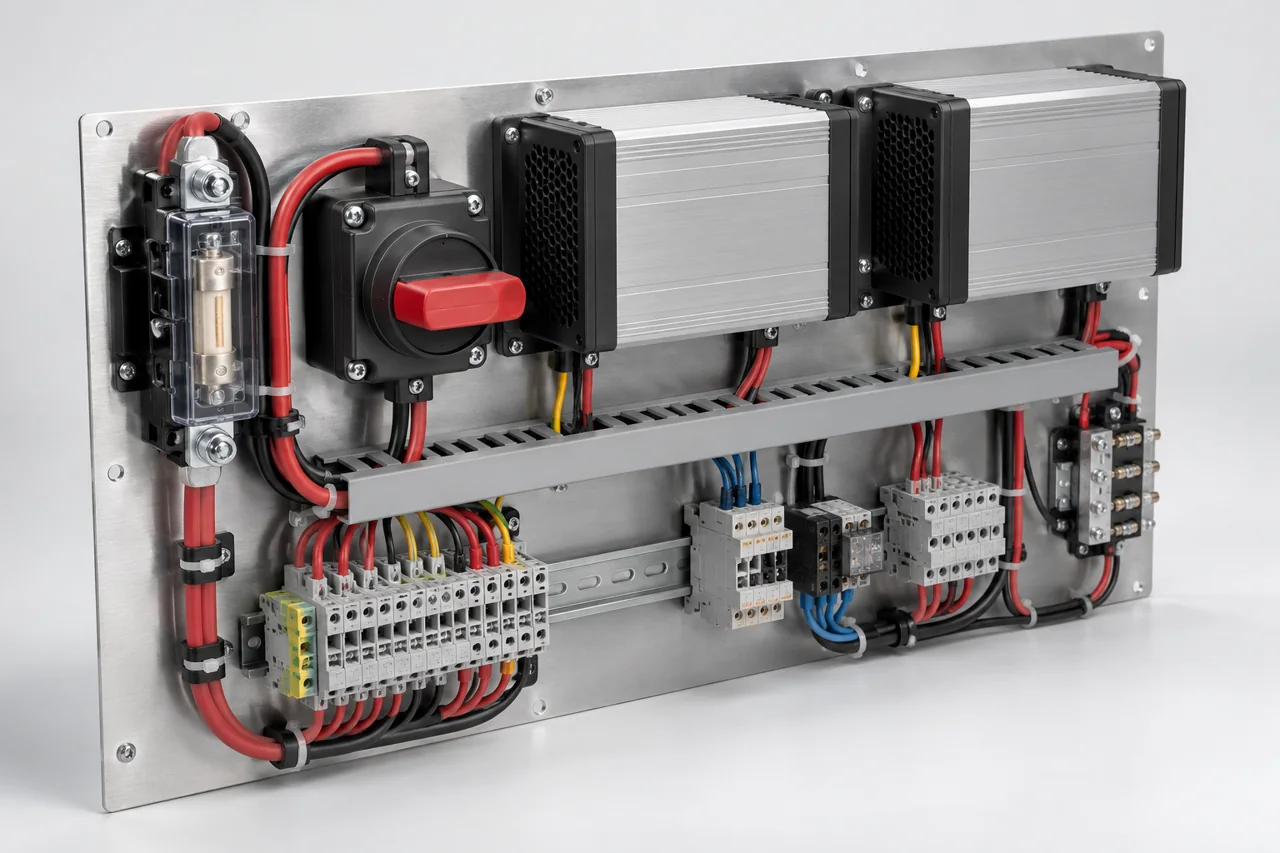

Power distribution & conversion

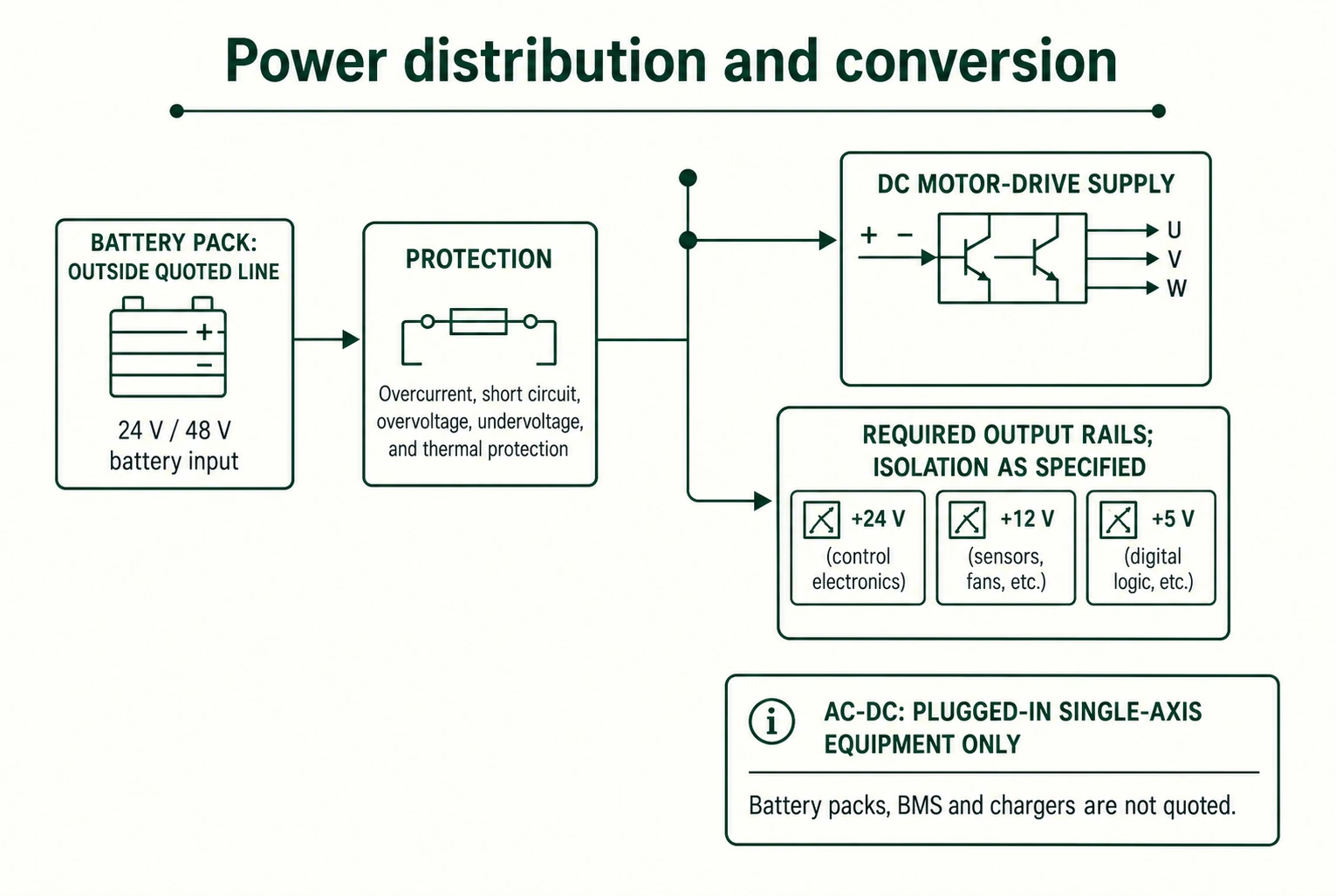

Pack input, drive branches and auxiliary rails are separate selection blocks. AC-DC is relevant only when the machine is plugged in.

FUNCTIONAL INTERFACE GUIDE

Functional breakdown

Define loaded/charged input range, reverse-polarity and transient requirements, branch current and disconnect behavior.

Input range must cover battery sag and charged voltage; define output, load peaks, isolation and heat dissipation.

Separate brake-coil and logic demand; specify release peaks, noise tolerance and allowed voltage variation.

For plugged-in single-axis equipment: mains range, DC output, load profile and mounting.
