Locked circular power connector

A locking mating interface for a pack or drive power connection. Confirm the selected connector and cable assembly as a complete pair.

Review the inputs ↓

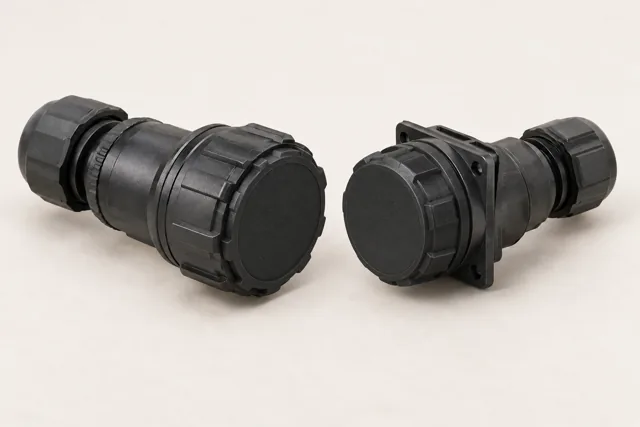

Locked circular power connector hardware

Selection inputs and interface checks

Electrical ratings

Provide operating voltage and current, conductor size and relevant peak or startup demand.

Mating pair

Specify both halves, contact arrangement, keying and locking method. Identify who mates it during field service.

Service exposure

Describe washdown, mating cycles, cable strain and installation exposure. Use the selected model’s documented rating; do not infer an IP rating.

Live mating

State whether connection or disconnection under load is required. Confirm that the chosen model permits it and follow the equipment isolation procedure.

Documentation to send

Include the existing ordering code where available, operating duty, receiving interface, quantity and required delivery date. Selected model datasheets and drawings define ratings, mounting and connections.

Review the interconnect blocks ↗ Send a component requirement ↗

RELATED COMPONENTS & FUNCTIONAL BLOCKS

Complete the surrounding interfaces.

Review these categories alongside the current component. A related category is not a verified compatible combination; selected model interfaces still need checking.
